Every mining and aggregate processing team knows the most predictable failure spot on any vibrating screen: the feed end. When tons of coarse, sharp ore free-falls directly onto the bare screen surface from a 3+ meter drop, the first 30cm of screen deck can tear through in less than a week, forcing frequent full or partial replacements that eat into production time. Most operators try thicker screen panels to fix this, but that only pushes the wear problem a little further down the deck. The rubber blanking plate installed in the feed buffer zone solves this root issue, and drastically extends the service life of the entire screen surface.
Absorbs Direct High-Impact Ore Fall

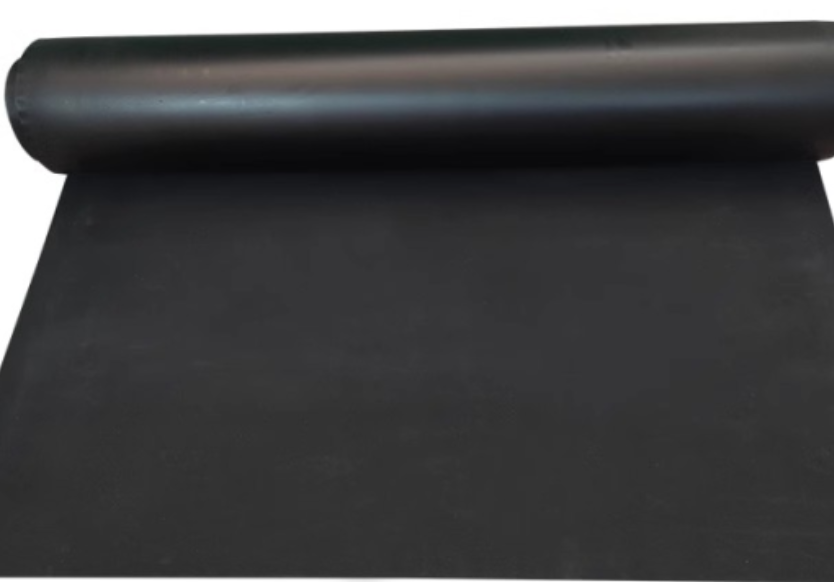

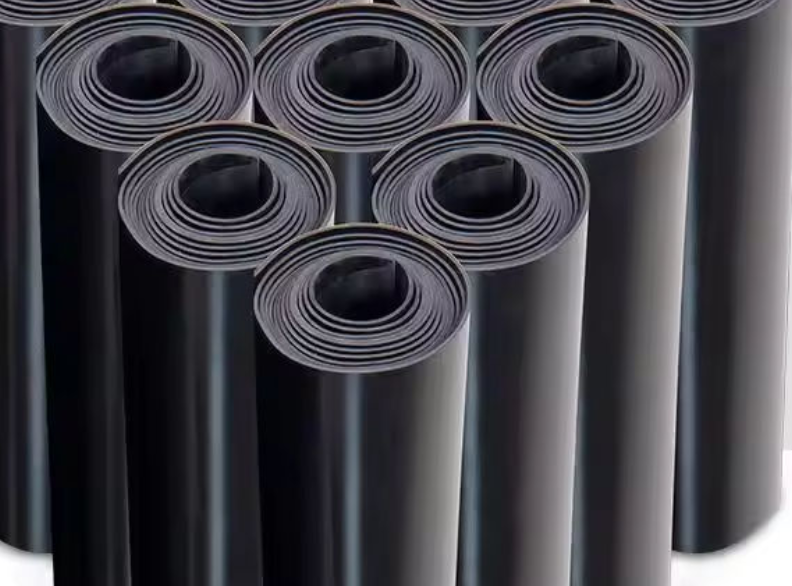

The rubber blanking plate is a thick, wear-resistant solid rubber panel that covers the high-impact feed zone completely, with no exposed screen apertures. When large, heavy rock chunks pour off the conveyor, they land on the soft, shock-absorbing rubber surface instead of slamming directly into delicate screen wires. The rubber diffuses the concentrated impact force across the whole buffer zone, so no single point on the screen surface takes a destructive direct hit from falling material.
Creates Even, Gentle Material Spread Across the Full Deck
Without a rubber blanking plate, all incoming ore piles up in a narrow, concentrated heap right at the feed end. This creates uneven, lopsided wear that wears out the front section of the screen far faster than the rest of the deck, wasting 80% of the screen’s unused service life. The textured surface of the rubber blanking plate slows down the fast-falling material and spreads it evenly across the full width of the screen, so material flows uniformly over every section of the screen surface instead of piling up on one small high-wear spot.
Field data from 2026 iron ore processing sites shows that adding a properly sized rubber blanking plate in the feed buffer zone extends the average full screen surface service life by 2.7 times. One quarry reported cutting their monthly screen replacement cost by 58% after the upgrade, with far fewer unplanned shutdowns for sudden feed-end screen tears. This low-cost, easy-to-install part is one of the highest-ROI upgrades to protect your entire vibrating screen deck.
