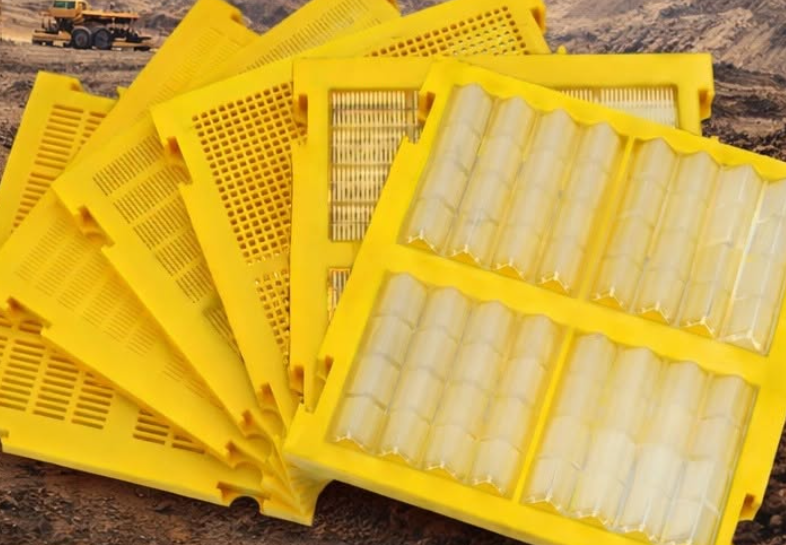

If you operate a mine and your vibrating screen is constantly clogging, the problem is unlikely to be the feed rate; it's probably a problem with the screen panel itself. Modular polyurethane screen panels effectively solve this problem, revolutionizing mining operations.
Efficiency Improvement is Crucial
Compared to traditional steel or manganese screens, polyurethane screen panels increase screening efficiency by 20-30%. Why? Polyurethane has a built-in "secondary vibration" effect. When the screen vibrates, the material undergoes microscopic deformation, effectively pushing fine particles through the screen openings instead of causing blockages. The self-cleaning function requires no additional maintenance.
Modular Design Reduces Downtime

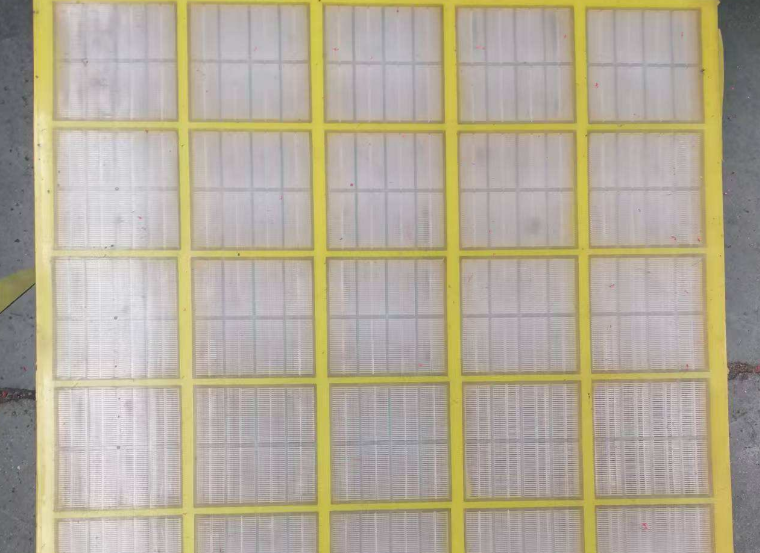

In busy mining operations, modular design is truly essential. Instead of replacing the entire screen, simply remove the damaged module (e.g., a 305×610×40mm screen panel) and insert the new one. Installation uses H-pin connections, so the entire replacement process takes only about 20 minutes, significantly saving time. If you process hundreds of tons of material per shift, replacing your screens with modular polyurethane screens can significantly reduce working hours.
Here are its application parameters and specifications
For the mining industry, the commonly used parameters for modular polyurethane screens are: aperture 0.1mm – 80mm; hardness 85A – 95A Shore A; tensile strength ≥25 MPa; temperature range: -40°C to 80°C; and abrasion life 2-3 times longer than steel screens. For heavy iron ore or silica screening, abrasion-resistant screens with 30-40% added silicon carbide are required. For handling viscous coal slime, a PTFE-coated anti-stick version can be selected, which can reduce material buildup by approximately 60%.
While the initial cost of polyurethane screens is indeed higher than that of ordinary screens, energy consumption is reduced by 15%, abrasion resistance is increased by 3-5 times, and replacement frequency is significantly reduced, allowing for a return on investment within a few months. Mines in many regions have already completed this transition, and their screening efficiency data is more convincing than any marketing claims.
