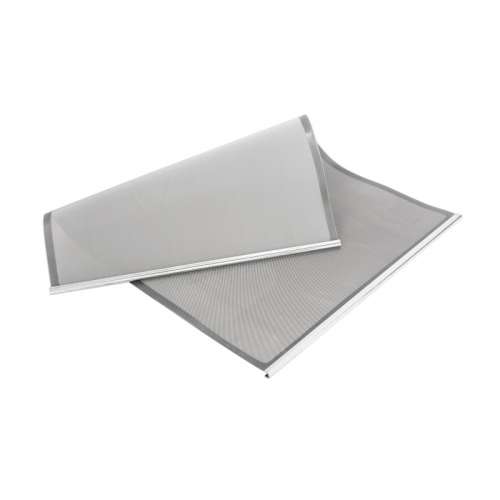

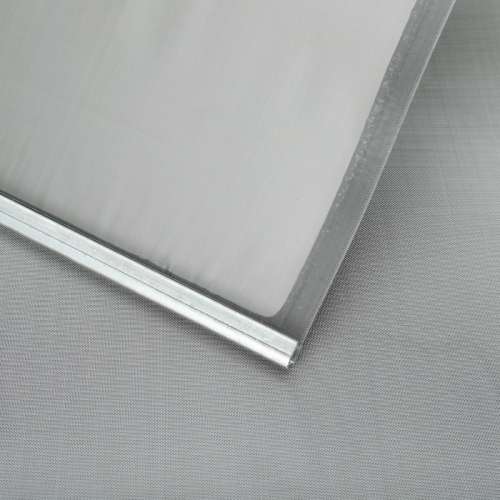

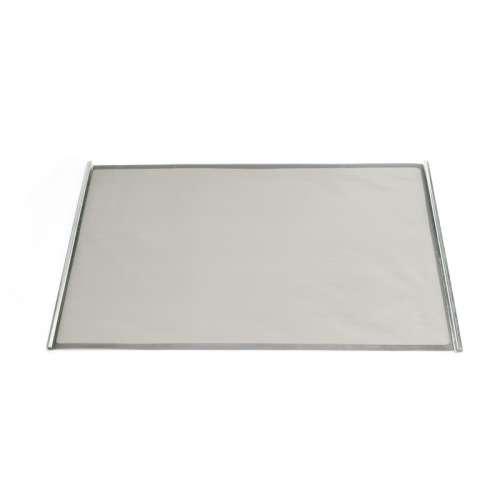

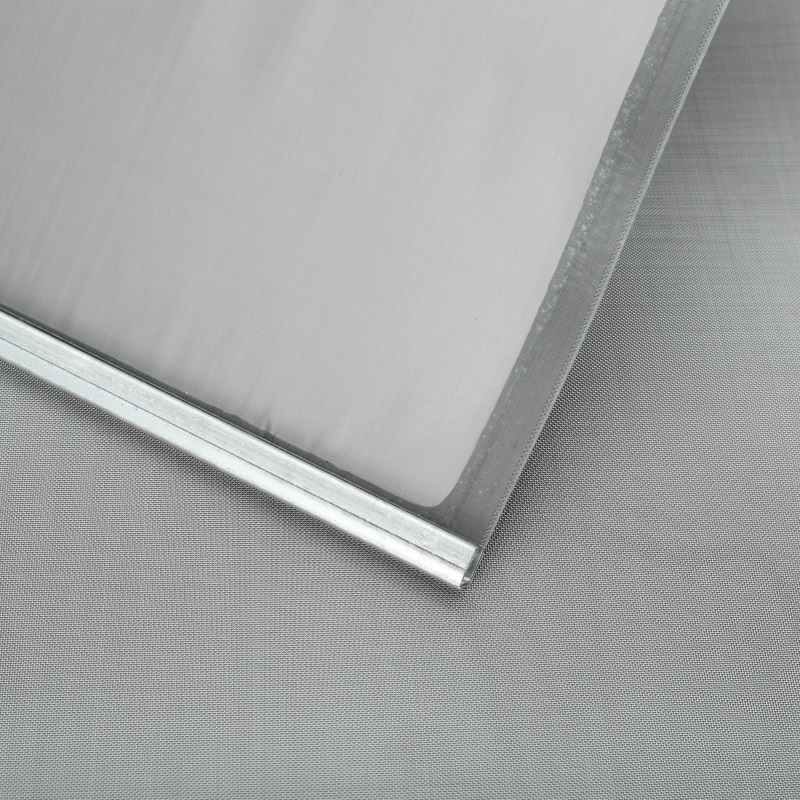

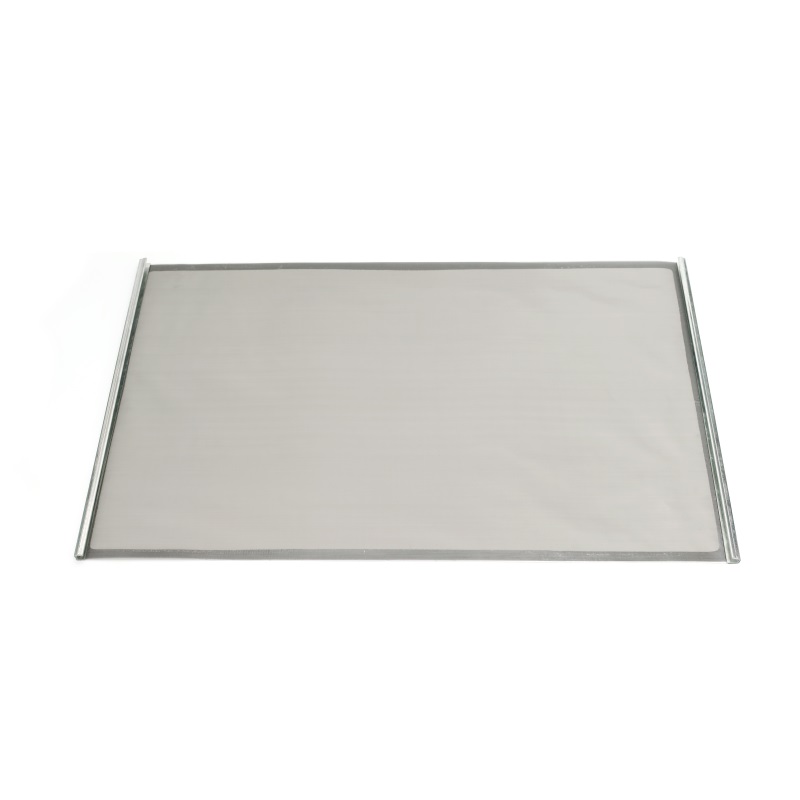

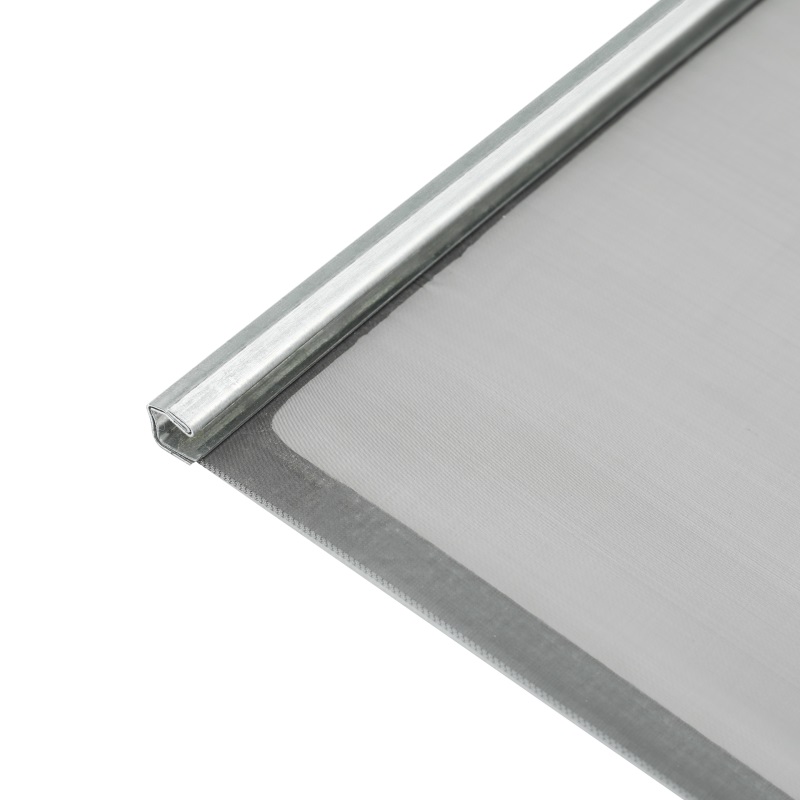

Stainless Steel Wire Metal Filter Screen Mesh

We offers a full line of woven wire cloth and woven mesh products to meet the requirements for a wide range of applications We manufacture and supply custom wire cloth of all varieties including plain, twilled, dutch, and reverse dutch and twill Orange wire designs woven wire cloth to meet specific product requirements, reducing clients costs and increasing production efficiencies

Description

We offers a full line of woven wire cloth and woven mesh products to meet the requirements for a wide range of applications. We manufacture and supply custom wire cloth of all varieties including plain, twilled, dutch, and reverse dutch and twill. Orange wire designs woven wire cloth to meet specific product requirements, reducing clients' costs and increasing production efficiencies.

Additional information

Normal Specification DIYA Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch	Wire diameter (mm)	Aperture (mm)	Mesh/inch (mm)	Mesh/inch	Wire diameter (mm)	Mesh/inch (mm)
2mesh	1.80	10.90	60mesh	0.15	0.273	2mesh
3mesh	1.60	6.866	70mesh	0.14	0.223	3mesh
4mesh	1.20	5.15	80mesh	0.12	0.198	4mesh
5mesh	0.91	4.17	90mesh	0.11	0.172	5mesh
6mesh	0.80	3.433	100mesh	0.10	0.154	6mesh
8mesh	0.60	2.575	120mesh	0.08	0.132	8mesh
10mesh	0.55	1.990	140mesh	0.07	0.111	10mesh
12mesh	0.50	1.616	150mesh	0.065	0.104	12mesh
14mesh	0.45	1.362	160mesh	0.065	0.094	14mesh
16mesh	0.40	1.188	180mesh	0.053	0.088	16mesh
18mesh	0.35	1.060	200mesh	0.053	0.074	18mesh
20mesh	0.30	0.970	250mesh	0.04	0.061	20mesh
26mesh	0.28	0.696	300mesh	0.035	0.049	26mesh
30mesh	0.25	0.596	325mesh	0.03	0.048	30mesh
40mesh	0.21	0.425	350mesh	0.03	0.042	40mesh
50mesh	0.19	0.318	500mesh	0.025	0.0385	50mesh
Technical Note: 1. Standard roll length: 15.24m, 30m, 30.5m, 61m 2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3. Special sizes available at request 4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request.
